Information Display
The information display shows the odometer, trip meter, engine oil life and maintenance service item codes, and other gauges.
■Switching the Display
Press the (Select/Reset) knob to
change the display.

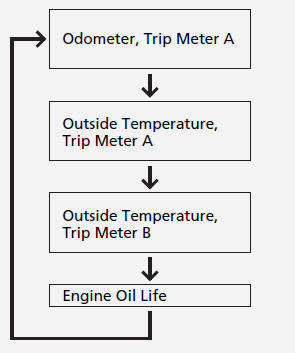

Each time you press the knob,
the information
display changes as follows:
Some of the items on the information display also appear on the audio/information screen*. They also change along with the information display changes while the fuel consumption is shown.
■Trip Meter
Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last reset. Meters A and B can be used to measure two separate trips.
■ Resetting a trip meter
To reset a trip meter, display it, then press and hold the
knob. The trip meter is
reset to 0.0.
Switch between trip meter A and trip meter B by
pressing theknob.
■Engine Oil Life
Shows the remaining oil life and Maintenance MinderTM.
■Check Fuel Cap
Appears when the fuel fill cap is loose or is not installed.
■Outside Temperature
Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).
■ Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading seems incorrect.
1. Turn the ignition switch to ON .
2. Press and hold the
(Select/Reset) knob for 10 seconds or more while the
outside temperature is shown on the information display.
- The information display goes into temperature adjustment mode. The display starts showing from -5°F to +5°F (U.S.) or -3°C to +3°C (Canada).
3. Release the knob when the right
adjustment amount is shown.
- The adjustment is complete.
The temperature sensor is in the front bumper. Road heat and exhaust from another vehicle can affect the temperature reading when your vehicle speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be updated after the temperature reading has stabilized.
Models with audio touch screen
Use the audio/information screen’s customized features to correct the temperature.
