The ignition switch must be in ACCESSORY or ON to use HFL.

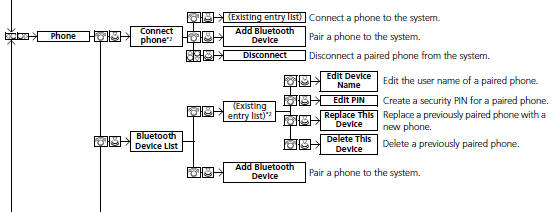

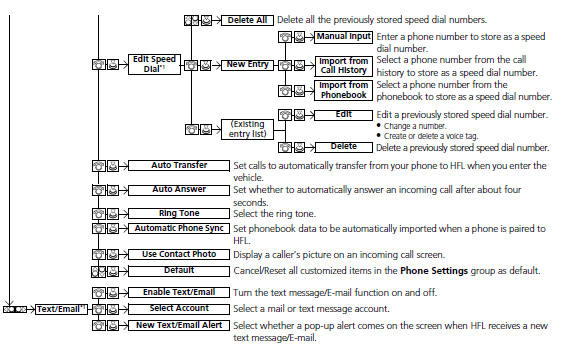

■ Phone Settings screen

1. Press the SETTINGS button.
2. Rotate to select Phone Settings, then press .

To use HFL, you must first pair your Bluetoothcompatible cell phone to the system while the vehicle is parked.

Some functions are limited while driving. A message appears on the screen when the vehicle is moving and the operation is canceled.

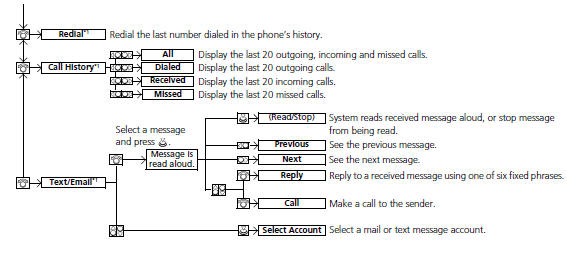

■ Phone screen

1. Press the PHONE button.
2. Press the MENU button to display the menu items.

■Phone Setup

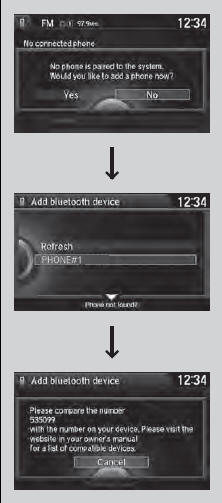

■ To pair a cell phone (when there is no phone paired to the system)
1. Press the PHONE button.
2. Rotate to select Yes, then press .
3. Make sure your phone is search or discoverable mode, then press .
- HFL automatically searches for a Bluetooth device.
4. When your phone appears on the list, select it by pressing .
- If your phone does not appear, you can select Refresh to search again.
- If your phone still does not appear, move to select Phone Not Found? and search for Bluetooth devices using your phone. From your phone, select HandsFreeLink.
5. HFL gives you a pairing code on the audio/ information screen.
- Confirm if the pairing code on the screen and your phone match. This may vary by phone.
6. You will receive a notification on the screen if pairing is successful.

Your Bluetooth-compatible phone must be paired to HFL before you can make and receive hands-free calls.

Phone Pairing Tips:

• You cannot pair your phone while the vehicle is moving.
• Up to six phones can be paired.
• Your phone’s battery may drain faster when it is paired to HFL.
• If your phone is not ready for pairing or not found by the system within three minutes, the system will time out and returns to idle.

Once you have paired a phone, you can see it displayed on the screen with one or two icons on the right side.

These icons indicate the following: : The phone can be used with HFL.
: The phone is compatible with Bluetooth® Audio.

When pairing is completed, an Automatic Phone Sync prompt appears. Select On if you want your call history and phonebook automatically imported to HFL.

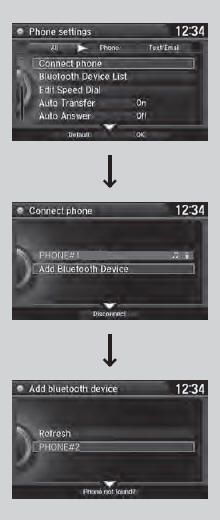

■ To pair a cell phone (when a phone has already been paired to the system)
1. Press the SETTINGS button.
2. Rotate to select Phone Settings, then press .
- Repeat the procedure to select Connect Phone, then Add Bluetooth Device.
3. Make sure your phone is in search or discoverable mode, then press .
- HFL automatically searches for a Bluetooth device.
4. When your phone appears on the list, select it by pressing .
- If your phone does not appear, you can select Refresh to search again.
- If your phone still does not appear, move to select Phone Not Found? and search for Bluetooth devices using your phone. From your phone, select HandsFreeLink.
5. HFL gives you a pairing code on the audio/ information screen.
- Confirm if the pairing code on the screen and your phone match.

This may vary by phone.
6. You will receive a notification on the screen if pairing is successful.

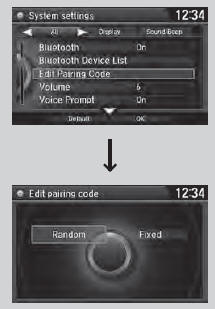

■ To change the pairing code setting
1. Press the SETTINGS button.
2. Rotate to select System Settings, then press .
- Repeat the procedure to select Edit Pairing Code.
3. Rotate to select Fixed or Random, then press .

The pairing code may be six or four digits depending on your phone.

The default pairing code is 0000 until you change the setting.

To create your own, select Fixed, and delete the current code, then enter a new one.

For a randomly generated pairing code each time you pair a phone, select Random.

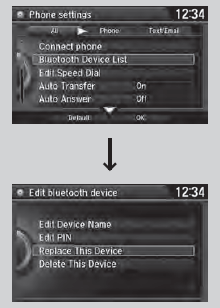

■ To replace an already-paired phone with a new phone
1. Press the SETTINGS button.

2. Rotate to select Phone Settings, then press .
- Repeat the procedure to select Bluetooth Device List.
3. Rotate to select a paired phone you want to replace, then press .
4. Rotate to select Replace This Device, then press .
5. HFL enters the pairing process and searches a new phone.
- Follow the prompts to pair a new phone.
6. You will receive a notification on the screen if pairing is successfu

The replaced phone will keep the same speed dial entries, call history, and security PIN information from the previously paired phone.

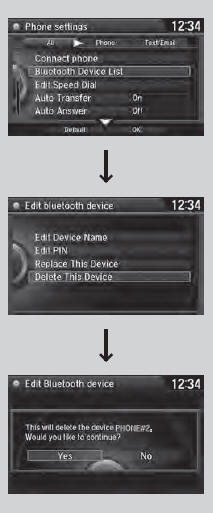

■ To delete a paired phone
1. Press the SETTINGS button.
2. Rotate to select Phone Settings, then press .
- Repeat the procedure to select Bluetooth Device List.
3. Rotate to select a phone you want to delete, then press .
4. Rotate to select Delete This Device, then press .
5. You will receive a confirmation message on the screen. Rotate to select Yes, then press .
6. You will receive a notification on the screen if it is successful.

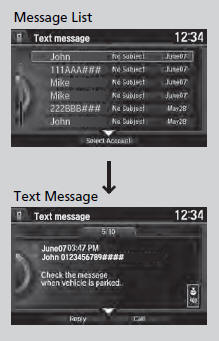

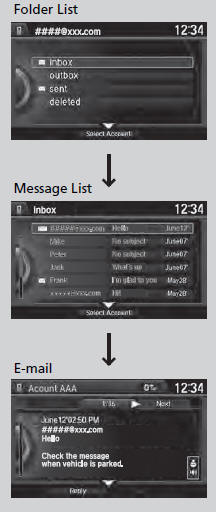

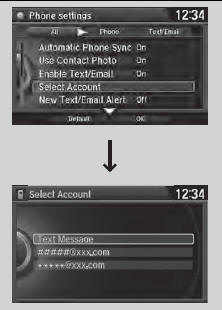

■To Set Up a Text Message/E-mail Options

■ To turn on or off the text/E-mail function
1. Press the SETTINGS button.
2. Rotate to select Phone Settings, then press .
- Repeat the procedure to select Enable Text/Email.
- A pop-up menu appears on the screen.
3. Rotate to select On or Off, then press .

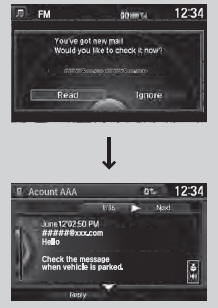

■ To turn on or off the text/E-mail notice
1. Press the SETTINGS button.
2. Rotate to select Phone Settings, then press .
- Repeat the procedure to select New Text/Email Alert.
- A pop-up menu appears on the screen.
3. Rotate to select On or Off, then press .

On: A pop-up notification comes on every time you receive a new text message.
Off: The message you receive is stored in the system without notification.

■ To set up the auto reading option
1. Press the SETTINGS button.
2. Rotate to select System Settings, then press .
- Repeat the procedure to select Message Auto Reading.
- A pop-up menu appears on the screen.
3. Rotate to select On, Off or Auto, then press .

On: A text message/Email is always read aloud.
Off: A text message/Email is not read aloud.
Auto: A text message/Email is read aloud only when driving.

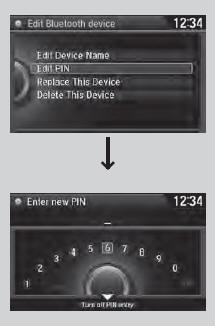

■To Create a Security PIN

You can protect each of the six cell phones with a security PIN.

1. Press the SETTINGS button.
2. Rotate to select Phone Settings, then press .
- Repeat the procedure to select Bluetooth Device List.
3. Rotate to select a phone you want to add a security PIN to, then press .
4. Rotate to select Edit PIN, then press .
5. Enter a new four-digit number.
- Rotate to select, then press .

Move to delete. Rotate to select OK to enter the security PIN.
6. Re-enter the four-digit number.
- The screen returns to the screen in step 4.

If the phone is already security PIN protected, you need to enter the current security PIN before clearing the PIN or creating a new one.

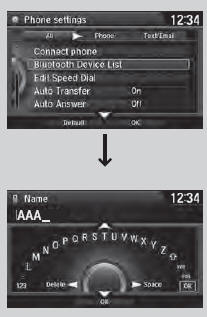

■Editing User Name

Edit the user name of a paired phone as follows:

1. Press the SETTINGS button.
2. Rotate to select Phone Settings, then press .
- Repeat the procedure to select Bluetooth Device List.
3. Rotate to select a phone you want to edit, then press .
4. Rotate to select Edit Device Name, then press .
5. Enter a new name of the phone.
- Rotate to select, then press . Move to delete. Rotate or move to select OK then press to enter the name.

■Automatic Transferring

If you get into the vehicle while you are on the phone, the call can be automatically transferred to HFL.

1. Press the SETTINGS button.
2. Rotate to select Phone Settings, then press .
- Repeat the procedure to select Auto Transfer.
3. Rotate to select On, then press .

■Auto Answer

You can set HFL to automatically answer an incoming call in four seconds.

1. Press the SETTINGS button.
2. Rotate to select Phone Settings, then press .
- Repeat the procedure to select Auto Answer.
3. Rotate to select On, then press .

■Ring Tone

You can change the ring tone setting.

1. Press the SETTINGS button.
2. Rotate to select Phone Settings, then press .
- Repeat the procedure to select Ring Tone.
3. Rotate to select Fixed, Mobile Phone or Off, then press .

Fixed: The fixed ring tone sounds from the speaker.
Mobile Phone: The ring tone stored in the connected cell phone sounds from the speaker.
Off: No ring tones sound from the speaker.

■Automatic Import of Cellular Phonebook and Call History

■ When Automatic Phone Sync is set to On:
When your phone is paired, the contents of its phonebook and call history are automatically imported to HFL.

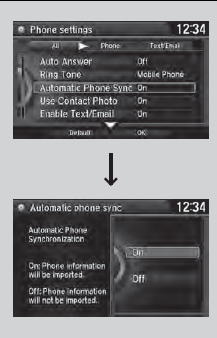

■ Changing the Automatic Phone Sync setting
1. Press the SETTINGS button.
2. Rotate to select Phone Settings, then press .
- Repeat the procedure to select Automatic Phone Sync.
3. Rotate to select On or Off, then press .

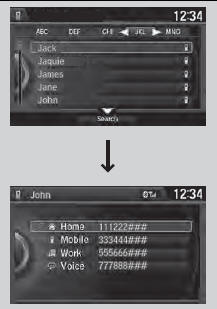

When you select a person from the list in the cellular phonebook, you can see up to three category icons.

The icons indicate what types of numbers are stored for that name.

On some phones, it may not be possible to import the category icons to HFL.

The phonebook is updated after every connection.

Call history is updated after every connection or call.

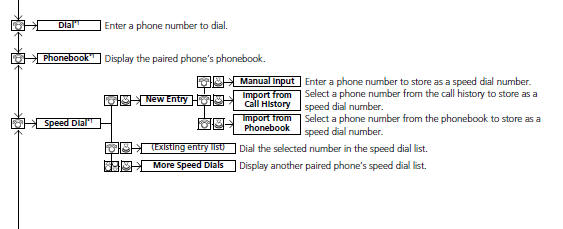

■Speed Dial

Up to 20 speed dial numbers can be stored per phone.

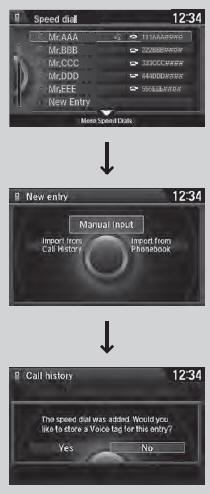

To store a speed dial number:

1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Speed Dial, then press .
- Repeat the procedure to select New Entry.
4. Rotate  to select a place to choose a number from, then press .
From Import from Call History:
- Select a number from the call history.
From Manual Input:
- Input the number manually.
From Import from Phonebook:
- Select a number from the linked cell phone’s imported phonebook.
5. When the speed dial is successfully stored, you are asked to create a voice tag for the number. Rotate to select Yes or No, then press .
6. Using the button, follow the prompts to store a voice tag for the speed dial entry.

When a voice tag is stored, press the button to call the number using the voice tag. Say “Call” and the voice tag name.

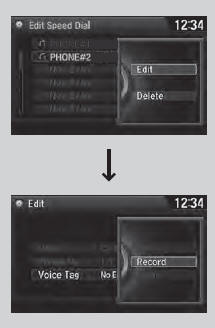

■ To add a voice tag to a stored speed dial number 1. Press the SETTINGS button.

2. Rotate to select Phone Settings, then press .

- Repeat the procedure to select Edit Speed Dial.

3. Select an existing speed dial entry.

- From the pop-up menu, rotate to select Edit, then press .

4. Rotate to select Voice Tag, then press .

- From the pop-up menu, rotate to select Record, then press .

5. Using the button, follow the prompts to complete the voice tag.

Avoid using duplicate voice tags.

Avoid using “home” as a voice tag.

It is easier for HFL to recognize a longer name. For example, use “John Smith” instead of “John.”

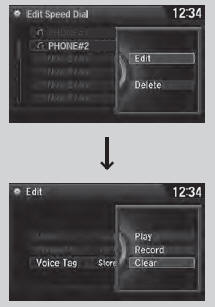

■ To delete a voice tag
1. Press the SETTINGS button.
2. Rotate to select Phone Settings, then press .
- Repeat the procedure to select Edit Speed Dial.
3. Select an existing speed dial entry.
- From the pop-up menu, rotate to select Edit, then press .
4. Rotate to select Voice Tag, then press .
- From the pop-up menu, rotate to select Clear, then press .
5. You will receive a confirmation message on the screen. Rotate to select Yes, then press .

■ To delete a speed dial
1. Press the SETTINGS button.
2. Rotate to select Phone Settings, then press .
- Repeat the procedure to select Edit Speed Dial.
3. Select an existing speed dial entry.
- From the pop-up menu, rotate to select Delete, then press .
4. You will receive a confirmation message on the screen. Rotate to select Yes, then press .

■Phonebook Phonetic Modification

Add phonetic modifications or a new voice tag to the phone’s contact name so that it is easier for HFL to recognize voice commands.

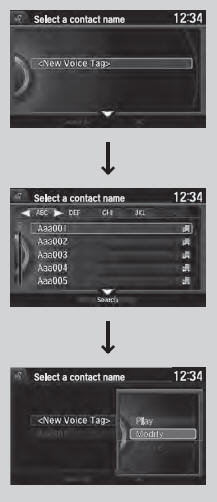

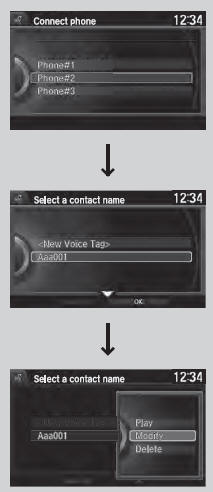

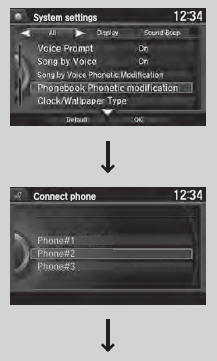

■ To add a new voice tag
1. Press the SETTINGS button.
2. Rotate to select System Settings, then press .
3. Rotate to select Phonebook Phonetic Modification, then press .
4. Rotate to select the phone you want to add phonetic modification to, then press .

Phonetic Modification is grayed out when Song By Voice is set to Off.

You can store up to 20 phonetic modification items.

5. Rotate to select New Voice Tag, then press .
6. Move   or and rotate to select a contact name, then press .
- The pop-up menu appears on the screen.
7. Rotate to select Modify, then press .
8. Using the button, follow the prompts to complete the voice tag.
9. You will receive a confirmation message on the screen. Rotate to select OK, then press .

■ To modify a voice tag
1. Press the SETTINGS button.
2. Rotate to select System Settings, then press .
3. Rotate to select Phonebook Phonetic Modification, then press .
4. Rotate to select the phone you want to add phonetic modification to, then press.
5. Rotate to select a contact name you want to modify, then press .
- The pop-up menu appears on the screen.
6. Rotate to select Modify, then press .
7. Using the button, follow the prompts to complete the voice tag.
8. You will receive a confirmation message on the screen. Rotate to select OK, then press .

You cannot modify or delete a contact name if it is edited with a phone other than the phone connected to HFL.

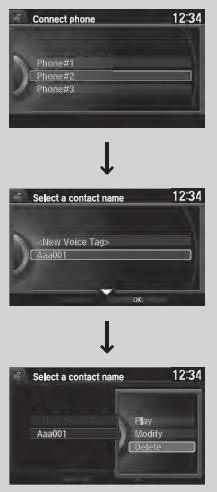

■ To delete a modified voice tag
1. Press the SETTINGS button.
2. Rotate to select System Settings, then press .
3. Rotate to select Phonebook Phonetic Modification, then press .
4. Rotate to select the phone you want to delete phonetic modification, then press .
5. Rotate to select a contact name you want to delete, then press .
- The pop-up menu appears on the screen.
6. Rotate to select Delete, then press .
7. Move and rotate to select OK, then press .

■ To delete all modified voice tags
1. Press the SETTINGS button.
2. Rotate to select System Settings, then press .
3. Rotate to select Phonebook Phonetic Modification, then press .
4. Rotate to select the phone you want to delete phonetic modification, then press .
- The contact name list appears.
5. Move and rotate to select Delete All, then press .
6. You will receive a confirmation message on the screen. Rotate to select Yes, then press .

■Making a Call

You can make calls by inputting any phone number, or by using the imported phonebook, call history, speed dial entries, or redial.

Any voice-tagged speed dial entry, phonebook name, or number can be dialed by voice from most screens.

Press the button and say “Call” and the voice tag name, “Call by name” and the phonebook name, or the phone number.

The maximum range between your phone and vehicles is 30 feet (10 meters).

Once a call is connected, you can hear the voice of the person you are calling through the audio speakers.

■ To make a call using the imported phonebook
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Phonebook, then press .
4. The phonebook is stored alphabetically.

Move to Search.
5. Rotate to select a number, then press .
- Dialing starts automatically.

This function is disabled while the vehicle is moving.

However, you can call a stored voice-tagged speed dial number, phonebook name, or number using voice commands.

■ To make a call using a phone number
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Dial, then press .
4. Rotate to select a number, then press .
5. Rotate to select , then press .
- Dialing starts automatically.

This function is disabled while the vehicle is moving.

However, you can call a stored voice-tagged speed dial number, phonebook name, or number using voice commands.

■ To make a call using redial
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Redial, then press .
- Dialing starts automatically.

Press and hold the  button to redial the last number dialed in your phone’s history.

■ To make a call using the call history
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Call History, then press .
4. Move  or to select All, Dialed, Received, and Missed.
5. Rotate to select a number, then press .
- Dialing starts automatically.

The call history displays the last 20 dialed, received, or missed calls.

(Appears only when a phone is connected to HFL.) These icons next to the number indicate the following:

: Dialed calls.
: Received calls.
: Missed calls.

■ To make a call using a speed dial entry
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Speed Dial, then press .
4. Rotate to select a number, then press .
- Dialing starts automatically.

Move to select More Speed Dials to view another paired phone’s speed dial list. You can make a call from that list using the currently connected phone.

When a voice tag is stored, press the button to call the number using the voice tag.

Any voice-tagged speed dial entry, phonebook name or number can be dialed by voice from any screen.

Press the button and follow the prompts.

■Receiving a Call

When there is an incoming call, an audible notification sounds (if activated) and the Incoming call screen appears.

Press the button to answer the call.

Press the button to decline or end the call.

Call Waiting
Press the button to put the current call on hold to answer the incoming call.

Press the button again to return to the current call.

Ignore the incoming call if you do not want to answer it.

Press the button if you want to hang up the current call.

■Options During a Call

The following options are available during a call.

Mute: Mute your voice.

Transfer: Transfer a call from HFL to your phone.

Touch Tones: Send numbers during a call. This is useful when you call a menudriven phone system.

The available options are shown on the Phone screen.

Rotate to select the option, then press .
- The mute icon appears when Mute is selected. Select Mute again to turn it off.

Touch Tones: Available on some phones.

■Receiving a Text Message/E-mail

HFL can display newly received text messages and E-mails as well as 20 of the most recently received messages on a linked cell phone. Each received message can be read aloud and replied to using a fixed common phrase.

1. A pop-up appears and notifies you of a new text message or E-mail.
2. Rotate to select Read to listen to the message, then press .
- The text message or E-mail is displayed.

The system automatically starts reading out the message.
3. To discontinue the message read-out, press .

The system does not display any received messages while you are driving. You can only hear them read aloud.

With some phones, you may be able to display up to 20 most recent text messages and E-mails.

State or local laws may limit your use of the HFL text message/E-mail feature. Only use the text message/ E-mail feature when conditions allow you to do so safely.

When you receive a text message or E-mail for the first time since the phone is paired to HFL, you are asked to turn the New Text/Email Alert setting to On.

■Selecting a Mail Account

If a paired phone has text message or mail accounts, you can select one of them to be active and receive notifications.

1. Press the SETTINGS button.
2. Rotate to select Phone Settings, then press .
- Repeat the procedure to select Select Account.
3. Rotate to select Text message or an E-mail account you want, then press .

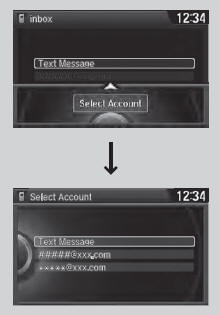

You can also select a mail account from the folder list screen or the message list screen.

Move to select Select Account, then press .

You can only receive notifications from one text message or mail account at a time.

■Displaying Messages

■ Displaying text messages
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Text/Email, then press .
- Select account if necessary.
4. Rotate to select a message, then press .
- The text message is displayed. The system automatically starts reading the message aloud.

The  icon appears next to an unread message.

If you delete a message on the phone, the message is also deleted in the system. If you send a message from the system, the message goes to your phone’s outbox.

To see the previous or next message, move or on the text message screen.

■ Displaying E-mails
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Text/Email, then press .
4. Rotate to select a folder, then press .
5. Rotate to select a message, then press .
- The E-mail is displayed. The system automatically starts reading the message aloud.

Received text messages and E-mails may appear in the message list screen at the same time. In this case, text messages are titled No subject.

1. Go to the text message or E-mail screen.
- The system automatically starts reading the message aloud.
2. Press to stop reading.

Press   again to start reading the message from the beginning.

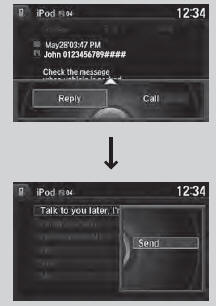

■ Reply to a message
1. Go to the text message or E-mail screen.
- The system automatically starts reading the message aloud.
2. Move and rotate to select Reply, then press .
3. Rotate  to select the reply message, then press .
- The pop-up menu appears on the screen.
4. Select Send to send the message.
- Complete appears on the screen when the reply message was successfully sent.

The available fixed reply messages are as follows:

• Talk to you later, I’m driving.
• I’m on my way.
• I’m running late.
• OK
• Yes
• No

You cannot add, edit, or delete reply messages.

■ Making a call to a sender
1. Go to the text message screen.
- The system automatically starts reading the message aloud.
2. Move and rotate to select Call, then press .
